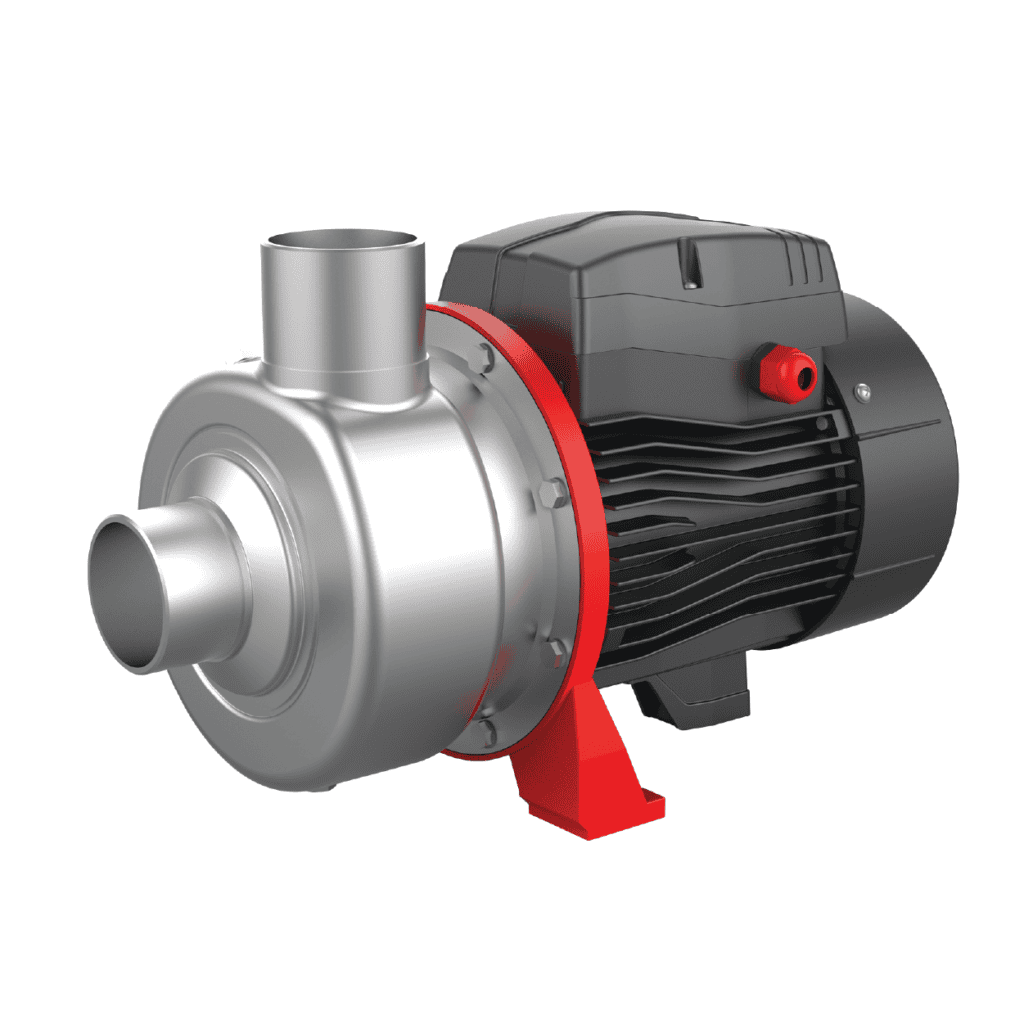

LEO ABK Semi-Open Impeller Stainless Steel Centrifugal Pump Range
Semi-open impeller pumping for compatible liquids with impurities, including selected industrial, farming and wastewater duties.
Model selection and pricing by enquiry.
ABK Semi-Open Impeller Stainless Steel Centrifugal Pump
Semi-open impeller pumping for compatible liquids with impurities, including selected industrial, farming and wastewater duties.
| Brand | LEO |
|---|---|
| Range | ABK Semi-Open Impeller Stainless Steel Centrifugal Pump |
| Application | Semi-open impeller pumping for compatible liquids with impurities, including selected industrial, farming and wastewater duties. |
| Selection details | Specify required flow, total head, liquid, electrical supply and installation conditions. |
Individual ABK models
D suffix denotes single-phase; the unsuffixed models are three-phase. Each page has its own published-point curve and model dimensions. Supply voltage and frequency must be confirmed for the supplied unit.
| Model | Motor output | Phase | Impeller passage |
|---|---|---|---|
| ABK50D | 0.37 kW | 1-phase | 9 mm |
| ABK50 | 0.37 kW | 3-phase | 9 mm |
| ABK100D | 0.75 kW | 1-phase | 12 mm |
| ABK100 | 0.75 kW | 3-phase | 12 mm |
| ABK120D | 0.9 kW | 1-phase | 12 mm |
| ABK120 | 0.9 kW | 3-phase | 12 mm |
| ABK150D | 1.1 kW | 1-phase | 12 mm |
| ABK150 | 1.1 kW | 3-phase | 12 mm |
| ABK200D | 1.5 kW | 1-phase | 16 mm |
| ABK200 | 1.5 kW | 3-phase | 16 mm |
| ABK300D | 2.2 kW | 1-phase | 16 mm |
| ABK300 | 2.2 kW | 3-phase | 16 mm |
| ABK400 | 3 kW | 3-phase | 19 mm |
Contact Krächtig to confirm the model, duty point, specifications, price and availability.
