LEO XKm50-1
0.11 kW single-phase clean-water peripheral pump. Individual hydraulic curve and dimensional drawing below. Price and availability by enquiry.
LEO XKm50-1 Peripheral Pump
Compact pump for domestic clean-water transfer, small sprinkler systems and compatible circulation duties. Select using the required flow and total dynamic head.
| Model | XKm50-1 |
|---|---|
| Motor power | 0.11 kW |
| Motor phase | Single phase |
| Head at zero flow | 20 m |
| Last published duty point | 1.5 m³/h at 3 m |
| Suction / discharge | 1 inch / 1 inch |
| Pump body | Cast iron with anti-rust treatment |
| Impeller | Brass |
| Shaft | AISI 304 stainless steel |
| Maximum liquid temperature | 60 °C |
| Insulation / enclosure | Class F / IPX4 |
The motor has copper windings and thermal protection. The series lists up to 8 m suction lift; achievable lift depends on altitude, liquid temperature and pipe losses. Confirm the supplied motor voltage, frequency and local availability before ordering. Shut-off head is at zero flow and is not a recommended operating duty.
XKm50-1 hydraulic performance
Redrawn from LEO's published technical table. Dots show published values; straight segments interpolate. No extrapolation beyond the published points.
| Flow (m³/h) | Head (m) |
|---|---|
| 0 | 20 |
| 0.3 | 19 |
| 0.6 | 15 |
| 0.9 | 11 |
| 1.2 | 7 |
| 1.5 | 3 |

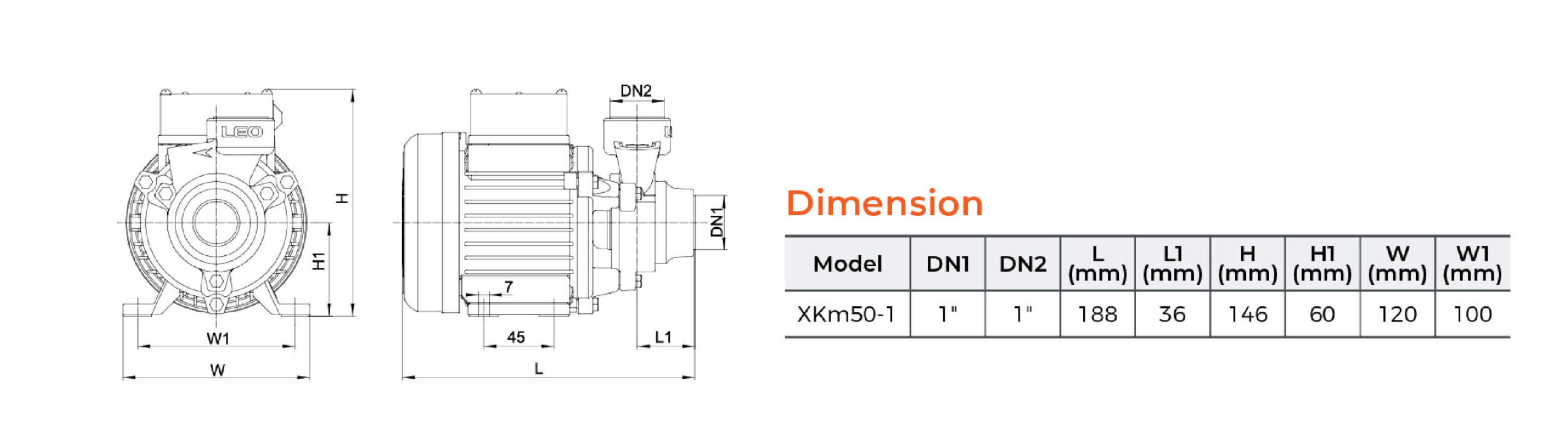

XKm50-1 dimensional drawing
| L | 188 mm |
|---|---|
| L1 | 36 mm |
| H | 146 mm |
| H1 | 60 mm |
| W | 120 mm |
| W1 | 100 mm |
| DN1 / DN2 | 1 inch / 1 inch |
