LEO APm30
0.3 kW single phase peripheral pump for clean water. View this model’s curve and dimensions below. Price and availability by enquiry.
LEO APm30 Peripheral Pump
For clean-water transfer, domestic supply and sprinkler systems. Match the required operating flow and total dynamic head to this model's performance curve.
| Motor power | 0.3 kW |
|---|---|
| Motor phase | Single phase |
| Head at zero flow | 30 m |
| Last published duty point | 1.8 m³/h at 5 m |
| Suction / discharge | 1 inch / 1 inch |
| Body | Cast iron with anti-rust treatment |
| Impeller | Brass |
| Shaft | AISI 304 stainless steel |
| Maximum liquid temperature | 60 °C |
| Insulation / enclosure | Class F / IPX4 |
Zero-flow head is a shut-off value. It is not the recommended operating duty. Confirm motor voltage, frequency and local availability before ordering. The series lists up to 8 m suction lift; achievable lift depends on altitude, liquid temperature and pipe losses. Single-phase versions include motor thermal protection.
APm30 hydraulic performance
Redrawn from LEO's published table. Points are published values; straight lines interpolate between them. The curve is not extended beyond the published data.
APm30 published flow and head points
| Flow (m³/h) | Head (m) |
|---|---|
| 0 | 30 |
| 0.3 | 26 |
| 0.6 | 20 |
| 0.9 | 15 |
| 1.2 | 12 |
| 1.5 | 8 |
| 1.8 | 5 |

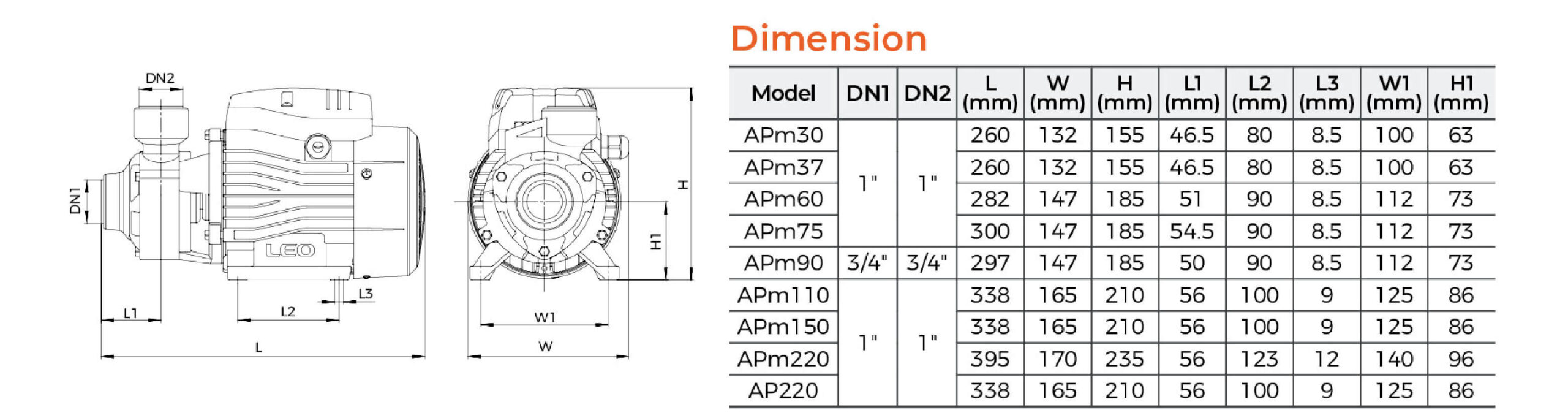

APm30 dimensions
Manufacturer outline and dimensions for APm30. Outline is not to scale.
| L | 260 mm |
|---|---|
| W | 132 mm |
| H | 155 mm |
| L1 | 46.5 mm |
| L2 | 80 mm |
| L3 | 8.5 mm |
| W1 | 100 mm |
| H1 | 63 mm |
| DN1 / DN2 | 1 inch / 1 inch |
