LEO LGP15
LGP15 compact petrol-driven clean-water pump. 1.6 HP two-stroke G43 engine. Contact Krächtig to confirm duty, price and availability.
LEO LGP15 petrol-driven clean-water pump

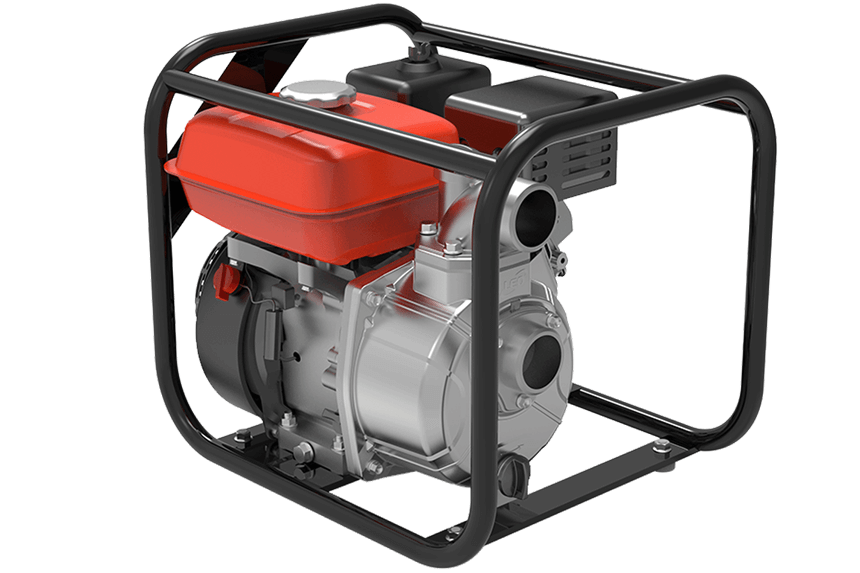

Portable water-transfer pump for clean, non-aggressive water, irrigation and drainage. This is the LGP15 two-stroke model, not an LGP-A, LGP-C, high-head or trash-water version. Product photograph represents the compact LGP family; supplied configuration may differ.
Model specifications
| Engine | G43, single-cylinder, two-stroke, air-cooled |
|---|---|
| Published maximum engine power | 1.6 HP |
| Rated engine speed | 7500 rpm |
| Displacement | 42.7 cm³ |
| Mixed-fuel tank capacity | 1 L |
| Inlet / outlet | 1½″ / 1½″ |
| Maximum suction lift | 8 m, subject to installation conditions |
| Manufacturer suction reference | 5 m suction in 120 s under source test conditions; not guaranteed for every installation |
| Liquid temperature | 0–40 °C |
| Impeller and diffuser | Anti-rust cast iron |
| Pump casing | Aluminium |
| Mechanical seal | Carbon / ceramic |
Use the fuel and lubrication specified in the supplied engine manual. Prime and install according to the pump manual. Maximum head and the final listed flow are not simultaneous duty limits. Confirm application and operating duty before selection.
LGP15 hydraulic curve and dimensions
Published hydraulic points
| Flow Q (m³/h) | Head H (m) |
|---|---|
| 0 | 35 |
| 2 | 34.5 |
| 4 | 34 |
| 6 | 33 |
| 8 | 30 |
| 10 | 27.5 |
| 12 | 23.5 |
| 14 | 15 |
| 15 | 5 |
Only manufacturer-tabulated points are plotted, joined by straight interpolation. No zero-head endpoint has been assumed. The final listed flow is not a stated maximum flow.
Model dimensions
| DN1 / DN2 | 1½″ / 1½″ |
|---|---|
| L | 344 mm |
| W | 279 mm |
| H | 345 mm |
| L1 | 233 mm |
| W1 | 175 mm |
| H1 | 180 mm |
Packaging
| Gross packaged weight | 8.27 kg |
|---|---|
| Package L × W × H | 355 × 290 × 370 mm |
