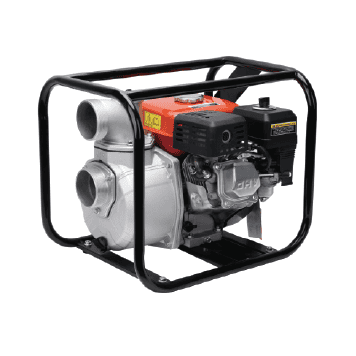

LEO LGP Petrol-Driven Water Pump Range
Portable petrol-driven clean-water transfer, flood irrigation, dewatering and dust suppression.
Model selection and pricing by enquiry.
LGP Petrol-Driven Water Pump
Portable petrol-driven water transfer, irrigation and dewatering. Standard and cast-iron clean-water models must be distinguished from dedicated sewage/dirty-water variants.
| Brand | LEO |
|---|---|
| Range | LGP Petrol-Driven Water Pump |
| Application | Portable petrol-driven water transfer, irrigation and dewatering. Standard and cast-iron clean-water models must be distinguished from dedicated sewage/dirty-water variants. |
| Selection details | Specify required flow, total head, liquid, engine/fuel preference, suction conditions and installation conditions. |
Trash-water models
Dedicated trash-water variants have a manufacturer-listed 22 mm maximum particle diameter, subject to actual solids and liquid conditions. Their model pages provide individual hydraulic curves, engine data and dimensions.
A-1 clean-water engine variants
- LGP30-A-1(XR950) — XR950 engine
- LGP30-A-1(GX160) — GX160 engine
- LGP30-A-1 — G200 engine
- LGP20-A-1(XR950) — XR950 engine
- LGP20-A-1(GX160) — GX160 engine
- LGP20-A-1 — G200 engine
Each exact engine option has its own specifications, published-point hydraulic curve and model-specific dimensions. G200, GX160 and XR950 fuel/oil capacities, displacement and stated power differ.
High-head clean-water models
- LGP20-2H(XR950) — XR950 engine
- LGP20-H(XR950) — XR950 engine
- LGP20-2H(GX200) — GX200 engine
- LGP20-2H — G200 engine
- LGP20-H(GX200) — GX200 engine
- LGP20-H — G200 engine
Each exact engine variant has its own specifications, published-point hydraulic curve and model-specific dimensional values. H and 2H duty curves differ, and the XR950 H variant has separate performance data. Outlet configurations require supplied-variant confirmation as noted on the model pages.
C-series clean-water models
| Model | Engine | Inlet / outlet | Published shut-off head |
|---|---|---|---|
| LGP20-C | G200, 6.5 HP | 2″ / 2″ | 30 m |
| LGP30-C | G200, 6.5 HP | 3″ / 3″ | 30 m |
Both C-series model pages have their own published-point curve and manufacturer outline with model-specific dimensions.
Compact two-stroke models
| Model | Engine power | Inlet / outlet | Published shut-off head |
|---|---|---|---|
| LGP10 | 1.6 HP | 1″ / 1″ | 35 m |
| LGP15 | 1.6 HP | 1½″ / 1½″ | 35 m |
Open each model for its own published hydraulic points, individual curve and dimensions. LGP-A, LGP-C, high-head, cast-iron and dirty-water variants have different engine and hydraulic specifications; confirm the exact designation. The listed variants each have model-specific technical information. Confirm the exact supplied engine option and installation configuration before ordering.
Cast-iron clean-water and sewage-duty models
| Model | Application | Engine power | Inlet / outlet |
|---|---|---|---|
| LGP20i-A | Cast-iron casing, clean-water transfer | 6.5 HP | 2″ / 2″ |
| LGP30-W | Dirty-water/sewage duty, debris smaller than 22 mm | 6.5 HP | 3″ / 3″ |
Each model has its own specifications, hydraulic curve and manufacturer dimensional drawing. These applications are not interchangeable: choose the version for the actual liquid and solids.
Contact Krächtig to confirm the model, duty point, specifications, price and availability.
