LEO LGP20i-A
Clean-water transfer, water supply and drainage with a cast-iron pump casing. G200 four-stroke petrol engine, published maximum power 6.5 HP. Confirm selection, price and availability with Krächtig.

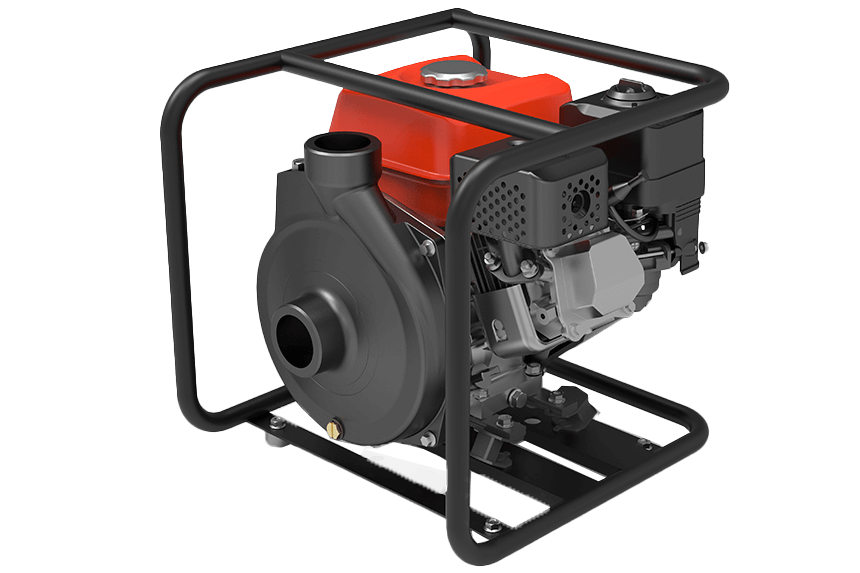

LEO LGP20i-A petrol-driven pump
Clean-water transfer, water supply and drainage with a cast-iron pump casing.
Model specifications
| Engine | G200, single-cylinder, four-stroke, air-cooled |
|---|---|
| Published maximum engine power | 6.5 HP |
| Rated engine speed | 3600 rpm |
| Displacement | 196 cm³ |
| Fuel tank capacity | 3.1 L |
| Engine oil capacity | 0.55 L |
| Inlet / outlet | 2″ / 2″ |
| Maximum suction lift | 8 m, subject to installation conditions |
| Manufacturer suction reference | 5 m suction in 120 s under source test conditions |
| Liquid temperature | 0–40 °C |
| Construction | Cast-iron pump casing and cover; aluminium-alloy impeller; carbon/ceramic mechanical seal. |
Engine and hydraulic specifications apply to this exact model designation. Check the supplied engine manual and nameplate. Suction performance depends on priming, pipework, elevation and liquid conditions. Confirm the required duty before selection.
LGP20i-A individual hydraulic curve
| Flow Q (m³/h) | Head H (m) |
|---|---|
| 0 | 50 |
| 5 | 48 |
| 10 | 46 |
| 15 | 40 |
| 20 | 28 |
| 25 | 11.5 |
| 28 | 5 |
Dots reproduce the published table; lines show straight interpolation only. No zero-head endpoint is assumed. The final listed flow is not a stated maximum flow.

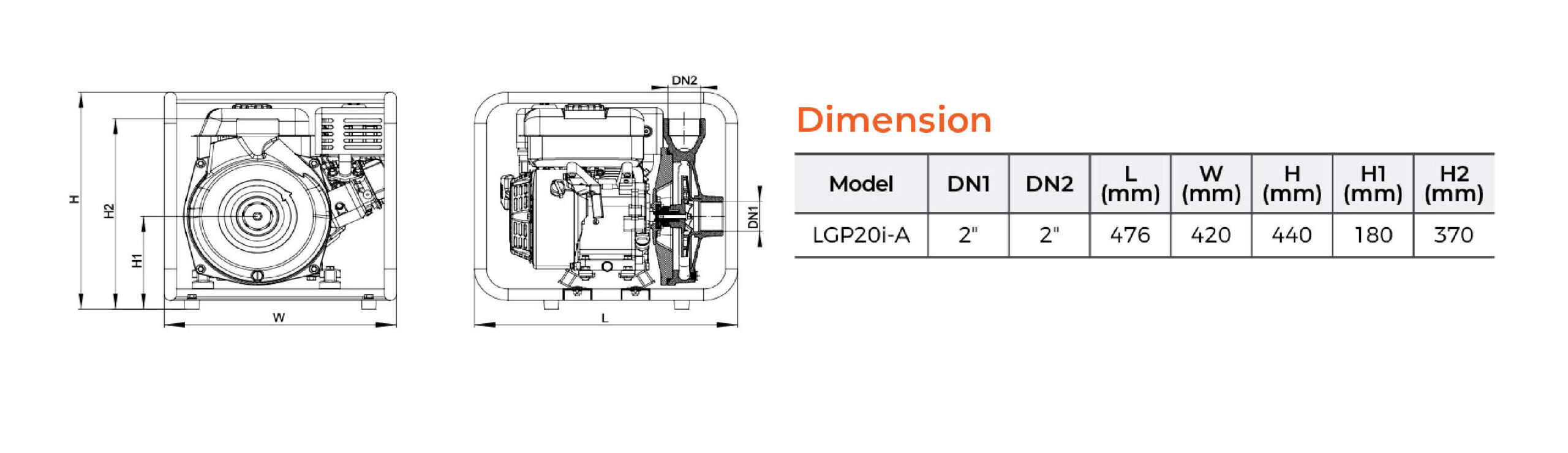

LGP20i-A manufacturer dimensional drawing
| DN1 / DN2 | 2″ / 2″ |
|---|---|
| L | 476 mm |
| W | 420 mm |
| H | 440 mm |
| H1 | 180 mm |
| H2 | 370 mm |
Packaging
| Gross packaged weight | 30 kg |
|---|---|
| Package L × W × H | 470 × 433 × 450 mm |
Confirm supplied dimensions and packing before transport or installation.
