LEO LGP30-W
Dirty-water and sewage transfer containing mud, sand and debris smaller than 22 mm, subject to liquid compatibility and installation conditions. G200 four-stroke petrol engine, published maximum power 6.5 HP. Confirm selection, price and availability with Krächtig.

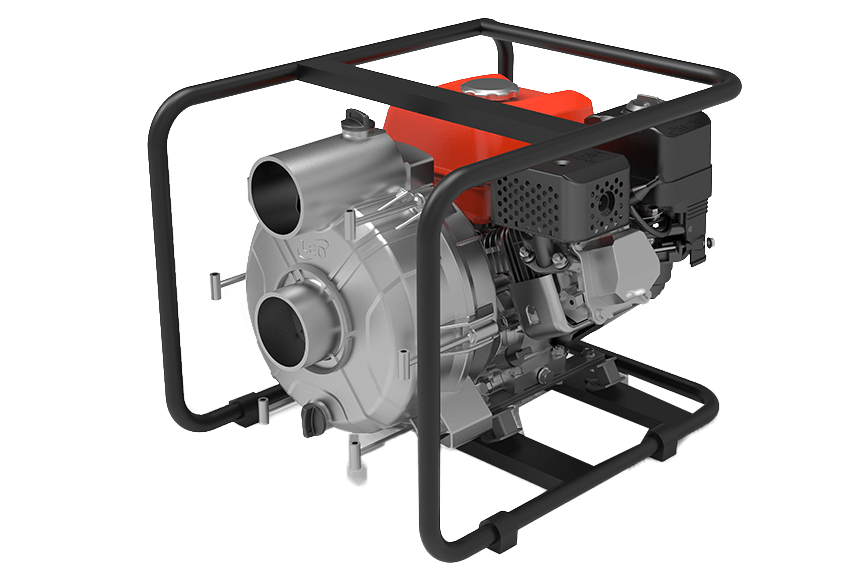

LEO LGP30-W petrol-driven pump
Dirty-water and sewage transfer containing mud, sand and debris smaller than 22 mm, subject to liquid compatibility and installation conditions.
Model specifications
| Engine | G200, single-cylinder, four-stroke, air-cooled |
|---|---|
| Published maximum engine power | 6.5 HP |
| Rated engine speed | 3600 rpm |
| Displacement | 196 cm³ |
| Fuel tank capacity | 3.1 L |
| Engine oil capacity | 0.55 L |
| Inlet / outlet | 3″ / 3″ |
| Maximum suction lift | 8 m, subject to installation conditions |
| Manufacturer suction reference | 5 m suction in 120 s under source test conditions |
| Liquid temperature | 0–40 °C |
| Construction | Aluminium pump body; HT200 cast-iron impeller and diffuser; silicon-carbide/silicon-carbide mechanical seal. |
Engine and hydraulic specifications apply to this exact model designation. Check the supplied engine manual and nameplate. Suction performance depends on priming, pipework, elevation and liquid conditions. Confirm the required duty before selection.
LGP30-W individual hydraulic curve
| Flow Q (m³/h) | Head H (m) |
|---|---|
| 0 | 30 |
| 5 | 27 |
| 10 | 25.5 |
| 15 | 24 |
| 20 | 22 |
| 25 | 20.5 |
| 30 | 18.5 |
| 35 | 17 |
| 40 | 15.5 |
| 45 | 14.5 |
| 50 | 11.5 |
| 55 | 9.2 |
| 60 | 7 |
Dots reproduce the published table; lines show straight interpolation only. No zero-head endpoint is assumed. The final listed flow is not a stated maximum flow.

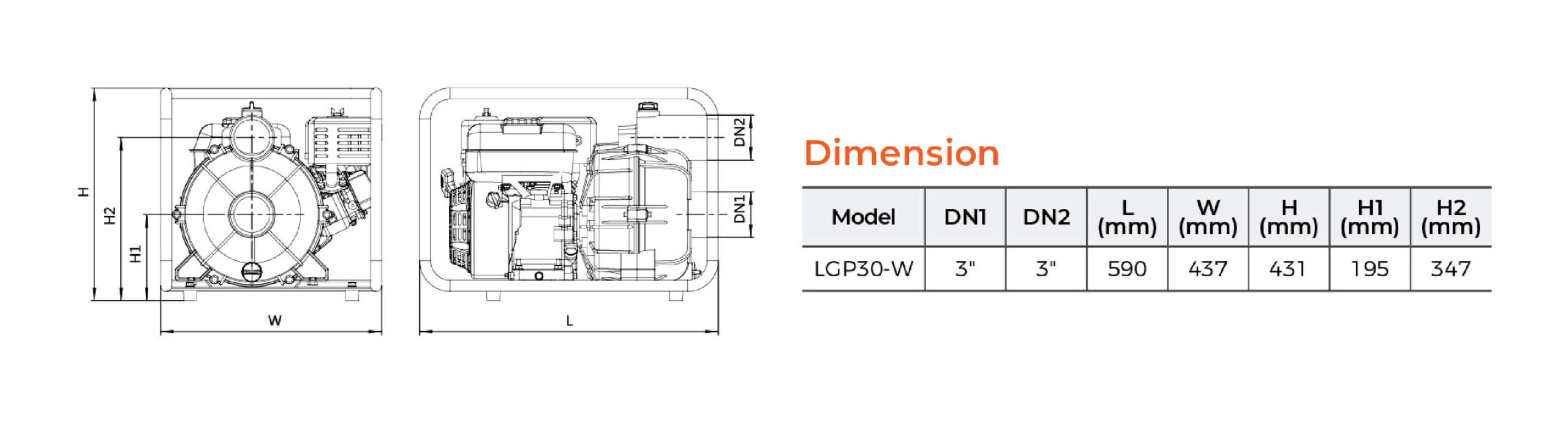

LGP30-W manufacturer dimensional drawing
| DN1 / DN2 | 3″ / 3″ |
|---|---|
| L | 590 mm |
| W | 437 mm |
| H | 431 mm |
| H1 | 195 mm |
| H2 | 347 mm |
Packaging
| Gross packaged weight | 34.6 kg |
|---|---|
| Package L × W × H | 605 × 450 × 459 mm |
Confirm supplied dimensions and packing before transport or installation.
